MVC OverView

 Introduction

The Model-View-Controller (MVC) architectural pattern separates an application into three main components: the model, the view, and the controller. The ASP.NET MVC framework provides an alternative to the ASP.NET Web Forms pattern for creating Web applications. The ASP.NET MVC framework is a lightweight, highly estable presentation framework that (as with Web Forms-based applications) is integrated with existing ASP.NET features, such as master pages and membership-based authentication. The MVC framework is defined in the System.Web.Mvc assembly.

Model:
                 Model represents shape of the data and business logic.It maintains the data of The application. Model objects retrieve and store model state in a database.
                                   Note -     Model is a data and business logic.
View:
              View is a user interface. View display data using model to the user and also enables them to   modify  the data.
                                   Note -  View is a User Interface.

Controller:

                       Controller handles the user request. Typically, user interact with View, which in-tern raises appropriate URL request, this request will be handled by a controller. The controller renders the appropriate view with the model data as a response.

                                 Note -   Controller is a request handler.

MVC Architecture

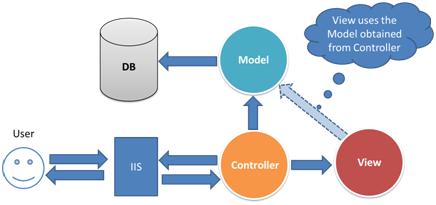

The following figure illustrates the flow of the user's request in ASP.NET MVC  See Above-.

               Request/Response in MVC Architecture

As per the above figure, when the user enters a URL in the browser, it goes to the server and calls appropriate controller. Then, the Controller uses the appropriate View and Model and creates the

the response and sends it back to the user.

 Why do we use MVC?

Model-view-controller (MVC) is an architectural pattern used in software engineering. In complex computer applications that present a large amount of data to the user, a developer often wishes to separate data (model) and user interface (view) concerns, so that changes to the user interface will not affect data handling, and that the data can be reorganized without changing the user interface. The model-view-controller solves this problem by decoupling data access and business logic from data presentation and user interaction, by introducing an intermediate component: the controller.

Model:
    The domain-specific representation of the information that the application operates. Domain logic adds meaning to raw data (e.g., calculating whether today is the user's birthday, or the totals, taxes, and shipping charges for shopping cart items).
    Many applications use a persistent storage mechanism (such as a database) to store data. MVC does not specifically mention the data access layer because it is understood to be underneath or encapsulated by the Model.

View:
    Renders the model into a form suitable for interaction, typically a user interface element. Multiple views can exist for a single model for different purposes.

Controller:
    Processes and responds to events, typically user actions, and may invoke changes on the model.

 MAIN ADVANTAGE OF USING MVC

1.  Faster development process.
2.  Easier to manage complexity (divide and conquer).
3.  It does not use server forms and view state.
4.  Front Controller pattern (rich routing).
5.  Better support for test-driven development.
6.  Ideal for distributed and large teams .
7.  High degree of control over the application behavior.
8.  Enables the full control over the rendered HTML.
9.  Provides clean separation of concerns(SoC).
10.  Enables Test Driven Development (TDD).
11.  Easy integration with JavaScript frameworks.
12.  Following the design of stateless nature of the web.
13.  RESTful urls that enables SEO.
14.  No ViewState and PostBack events.


ASP .NET MVC Features

• Separation of application tasks
•   –Input logic, business logic, UI logic Support for test-driven development –
• Unit testing
•   –No need to start app server
• Extensible and pluggable framework
•  –Components easily replaceable or customized(view engine, URL routing, data serialization,…)

MVC Framework-Architecture

MVC -Architecture

In This Architecture Use hit MVC Application then hit iis server server intract firstly controller.  Controller is main  because it is interact with model and view both and  use database in model class.

In this Artical Give short deascription about MVC.

The Model-View-Controller (MVC) is an architectural pattern that separates an application into three main logical

 components: the model, the view, and the controller. Each of these components are built to handle specific

 development aspects of an application. MVC is one of the most frequently used industry-standard web development

 framework to create scalable and extensible projects.

If you use MVC then This is make light and fast speed to your application and more easy to learn

MVC Flow

In Mvc  Flow Describe that Basically Browser  Send Request to controller Then.

Controller Intract with Model and View and get result Whatever action and code execute .

After that controller get response and hit with browser and User see Out Put

MVC application takes place when certain request comes from the client. The diagram below shows the flow:

Flow Steps

1.  The client browser sends request to the MVC Application.

2.  Global.ascx receives this request and performs routing based on the URL of 3. incoming request using the RouteTable, RouteData, UrlRoutingModule and MvcRouteHandler objects.

3.  This routing operation calls the appropriate controller and executes it using the IControllerFactory object and MvcHandler object's Execute method.

4.  The Controller processes the data using Model and invokes the appropriate method using ControllerActionInvoker object

5.  The processed Model is then passed to the View which in turn renders the final output.
